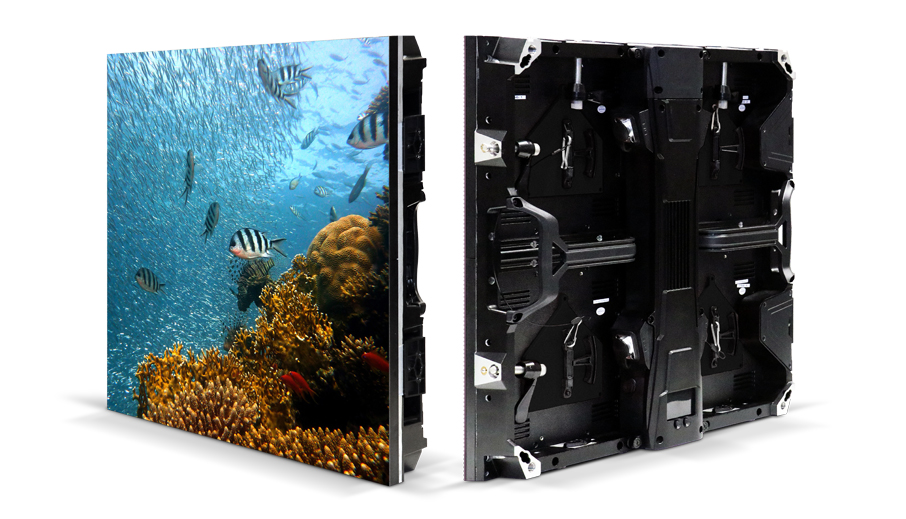

Cost-effective Indoor LED Displays for Fixed Installations.
Our Pixel Plus Xcite model is tailored for fixed installations within Houses of Worship
with a rental style panel for precision and down-the-road flexibility. Stage Plus is renowned
for delivering the highest quality products to the market with equally efficient and quality service.
Key Features.
• 1.5mm | 1.9mm | 2.6mm | 2.9mm | 3.9mm | 4.8mm pixel pitch
• Fast auto locks for quick installation and pull down
• Completely modular, tool free design
• One man assembly
• Advanced electronics with a high refresh rate
• Memory on module and 18+ bit grey scale as standard
• HDR10 ready
• Separate Smartbox control panel for easy servicing
• Exeptional thermal design
• Light weight – only 9..5kg’s per panel
• In-house servicing and support

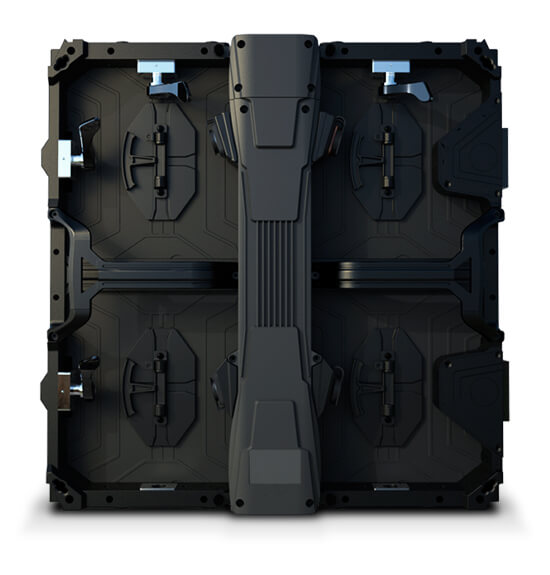

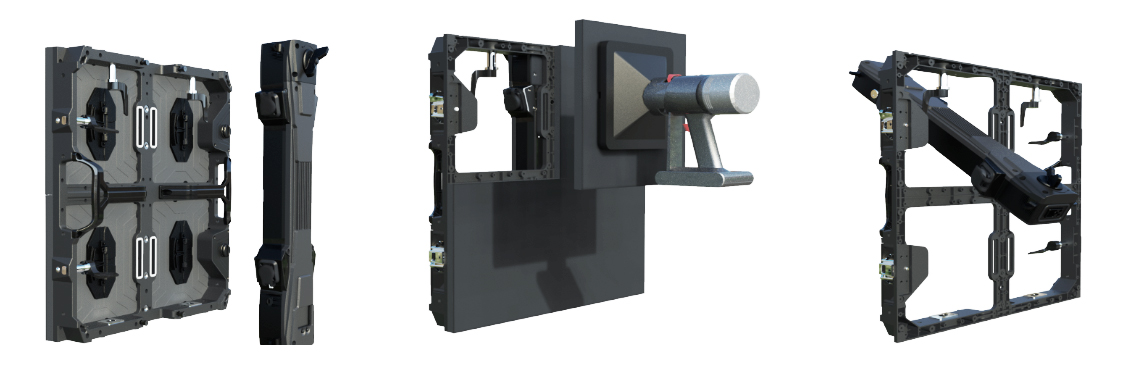

Back Remove Box
Easily remove the Smartbox from back

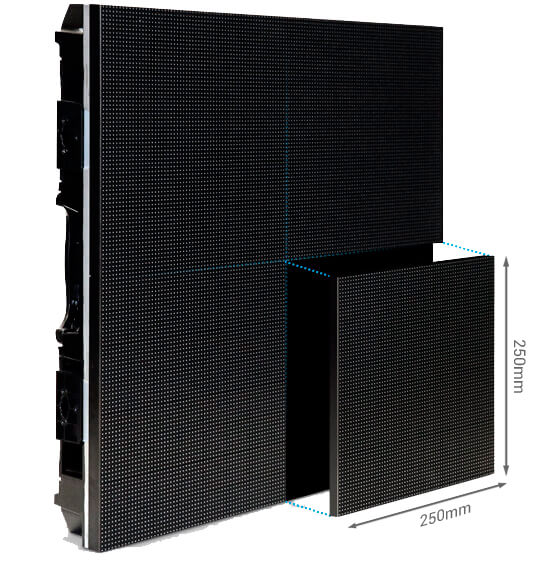

Front Remove
Easily remove each module from the front with Vacuumm *Dyson
Front Remove Box
Easily remove the Smartbox from the front once all modules have been removed
Specifications.
• Pixel Pitch – six options: 1.5mm | 1.9mm | 2.6mm | 2.9mm | 3.9mm | 4.8mm
• Pixel composing – SMD 3 in 1
• Brightness – 1000cd
• Refresh Rate – 3840Hz
• Viewing Angle – 140°(H)/140°(V)
• Optional curve latches convex or concave arrangement
• Cabinet size – 500mm x 500mm x 100mm / 19.685″ x 19.685″ x 3.93″
• Weight – 9.5 kg
• Lifetime – 100,000 hours
• Max power – 210W
