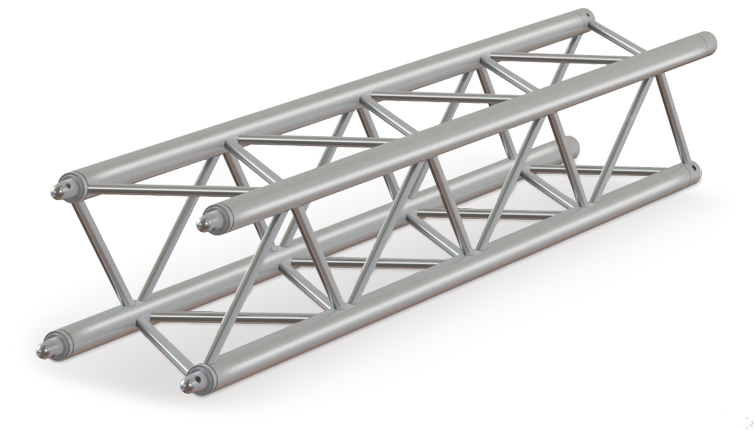

OV 30 Truss.
Lightweight. Adaptable. Return on investment.
The OV range represents an innovative engineering solution to a common size of truss for the entertainment, event and presentation industry.
Designed to the latest Eurocodes, combines high comparative load capacities, low self-weight, and comes at a competitive price. All this whilst analysing the most common slinging / support methods on the truss has determined an ‘engineered’ product that can utilise the most modern manufacturing techniques.
The OV range is a series of square truss systems using conical connectors for a quick fixing method. Brace patterns are specifically designed to withstand the loads and forces implied by all common slinging and support methods. The extrusions used in the construction of the trusses are bespoke to Total Solutions Group and have been rigorously designed to enhance the structural effectiveness of the trusses and also to speed up manufacturing.
Lengths, Codes & Weights

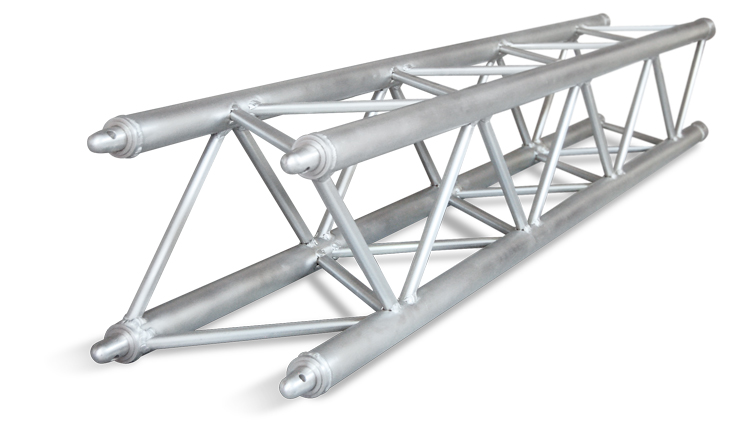

OV30 Truss
0.5m order code: TFL-OV30-050 4.1kg
1.0m order code: TFL-OV30-100 6.8kg
1.5m order code: TFL-OV30-150 –
2.0m order code: TFL-OV30-200 12.3kg
2.5m order code: TFL-OV30-250 –
3.0m order code: TFL-OV30-300 17.8kg
4.0m order code: TFL-OV30-400 23.3kg
Material Specifications
Main Chord: 48.3 x 2.6mm
Braces: Special Extrusion
Material Specifications: EN AW-6082 T6
Fixings: Conical : TFC pins & R3 Clips
OV 40 Truss.
Lightweight. Adaptable. Return on investment.
The OV range represents an innovative engineering solution to a common size of truss for the entertainment, event and presentation industry.
Designed to the latest Eurocodes, combines high comparative load capacities, low self-weight, and comes at a competitive price. All this whilst analysing the most common slinging / support methods on the truss has determined an ‘engineered’ product that can utilise the most modern manufacturing techniques.
The OV range is a series of square truss systems using conical connectors for a quick fixing method. Brace patterns are specifically designed to withstand the loads and forces implied by all common slinging and support methods. The extrusions used in the construction of the trusses are bespoke to Total Solutions Group and have been rigorously designed to enhance the structural effectiveness of the trusses and also to speed up manufacturing.
Lengths, Codes & Weights
OV40 Truss
0.5m order code: TFL-OV40-050 4.7kg
1.0m order code: TFL-OV40-100 8.0kg
1.5m order code: TFL-OV40-150 –
2.0m order code: TFL-OV40-200 14.7kg
2.5m order code: TFL-OV40-250 –
3.0m order code: TFL-OV40-300 21.4kg
4.0m order code: TFL-OV40-400 23.3kg
Material Specifications
Main Chord: 48.3 x 3mm
Braces: Special Extrusion
Material Specifications: EN AW-6082 T6
Fixings: Conical : TFC pins & R3 Clips
Accessories.

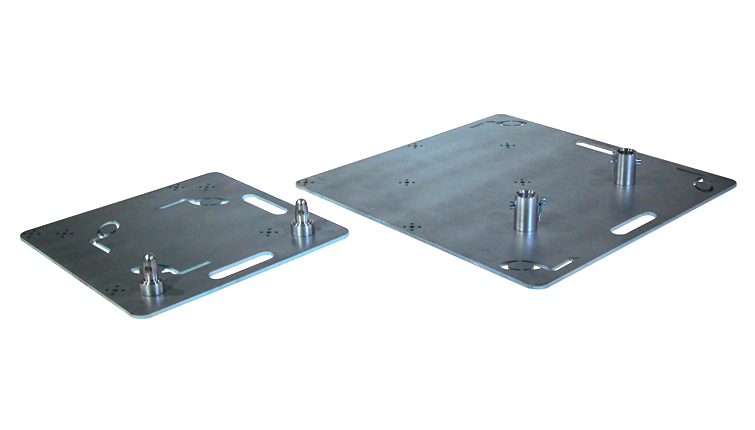

OV Base Plates
The OV range of base plates are made from 8mm steel with an electroplated finish
500 Base Plate
OV30 Base Plate order code: TFL-OV30BP-500
OV40 Base Plate order code: TFL-OV40BP-500
750 Base Plate
OV30 Base Plate order code: TFL-OV30BP-750
OV40 Base Plate order code: TFL-OV40BP-750

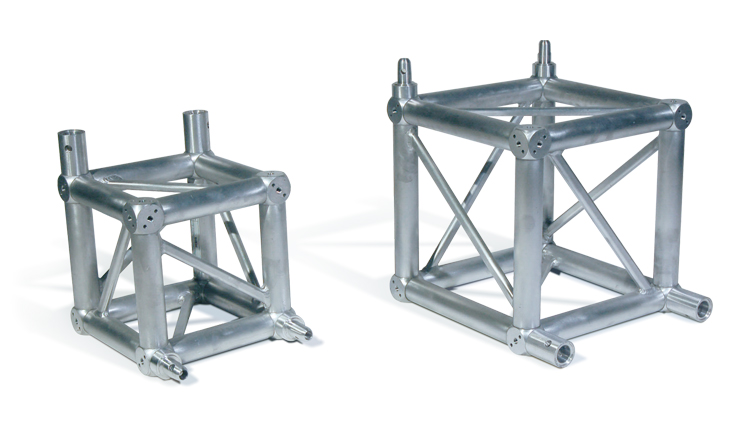

OV Blocks
The OV range of blocks uses a conical connector for fast, quick and ridged joining.
OV30 Block order code: TFL-OV30CB …
OV40 Block order code: TFL-OV40CB …
OV Base Plate Couplers
The OV range of couplers are made from structural grade 6082-T6 aluminium male and female connectors that provide easy application with intuitive location pins. Trusses can be mid or corner mounted.
Male
OV30/40 Coupler order code: TFL-OV30BPC-M
Female
OV30/40 Coupler order code: TFL-OV30BPC-F
Boomerang Base Plate
The OV range of base plates are made from 8mm steel with an electroplated finish
500 Base Plate
OV30 Base Plate order code: TFL-OV30BP-500
OV40 Base Plate order code: TFL-OV40BP-500
750 Base Plate
OV30 Base Plate order code: TFL-OV30BP-750
OV40 Base Plate order code: TFL-OV40BP-750
Podium Top
The OV range of blocks uses a conical connector for fast, quick and ridged joining.
OV30 Block order code: TFL-OV30CB …
OV40 Block order code: TFL-OV40CB…

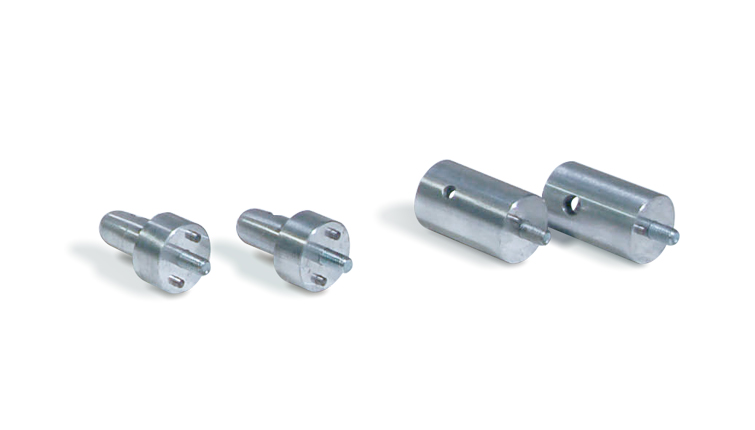

R Clips & Pins
The OV range of couplers are made from structural grade 6082-T6 aluminium male and female connectors that provide easy application with intuitive location pins. Trusses can be mid or corner mounted.
OV30/40 Base Plate Coupler – Male order code: TFL-OV30BPC-M
OV30/40 Base Plate Coupler – Female order code: TFL-OV30BPC-F
Half Coupler
Available in anodised Black or Natural
SWL: 500 Kg
Tube Diameters: 48 – 52mm
Fixings: M12 Wing Nut or M12 Eye Nut

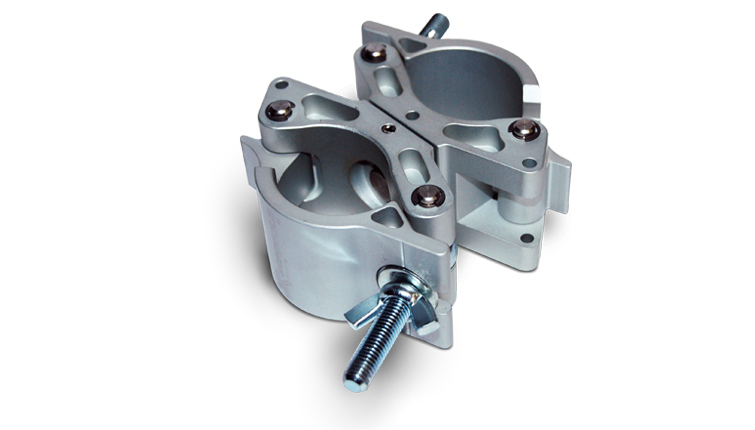

Swivel Coupler
Available in anodised Black or Natural
SWL: 500 Kg
Tube Diameters: 48 – 52mm
Optional Fixings: Seloc pins
